RISCO RisControl 8" Touchscreen Keypad – suits LightSYS+ & LightSYS2

The RISCO RisControl 8" Touchscreen Keypad delivers intuitive control and a clear overview of your LightSYS+ or LightSYS2 alarm system. Designed for ease of use, this high-resolution interface allows users to manage alarm functions and view live video from RISCO’s VUpoint Video Solution all from one access point.

RisControl connects directly to the control panel via the System BUS (RS-485) and communicates with the RISCO Cloud through Wi-Fi for enhanced connectivity. Its sleek, modern design combines performance and simplicity, ideal for residential and commercial installations.

Key Features:

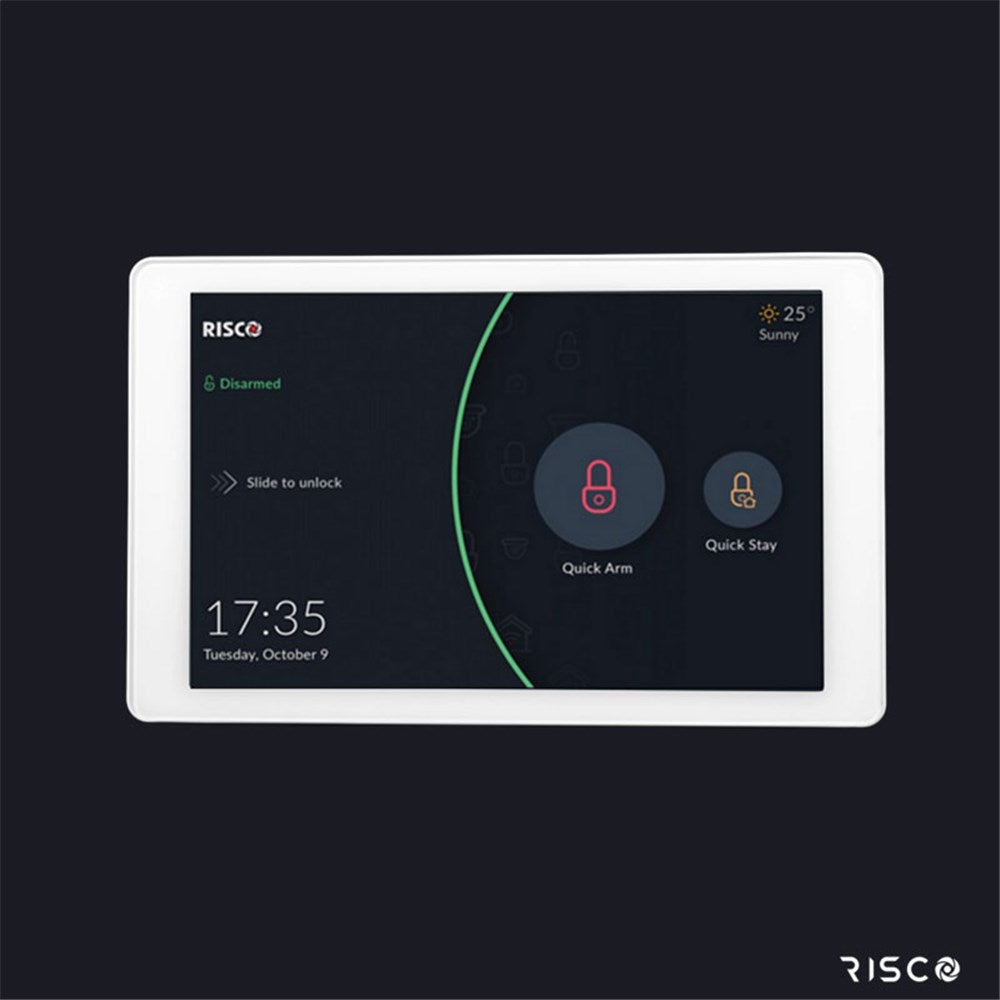

• 8" IPS touchscreen with high-resolution display

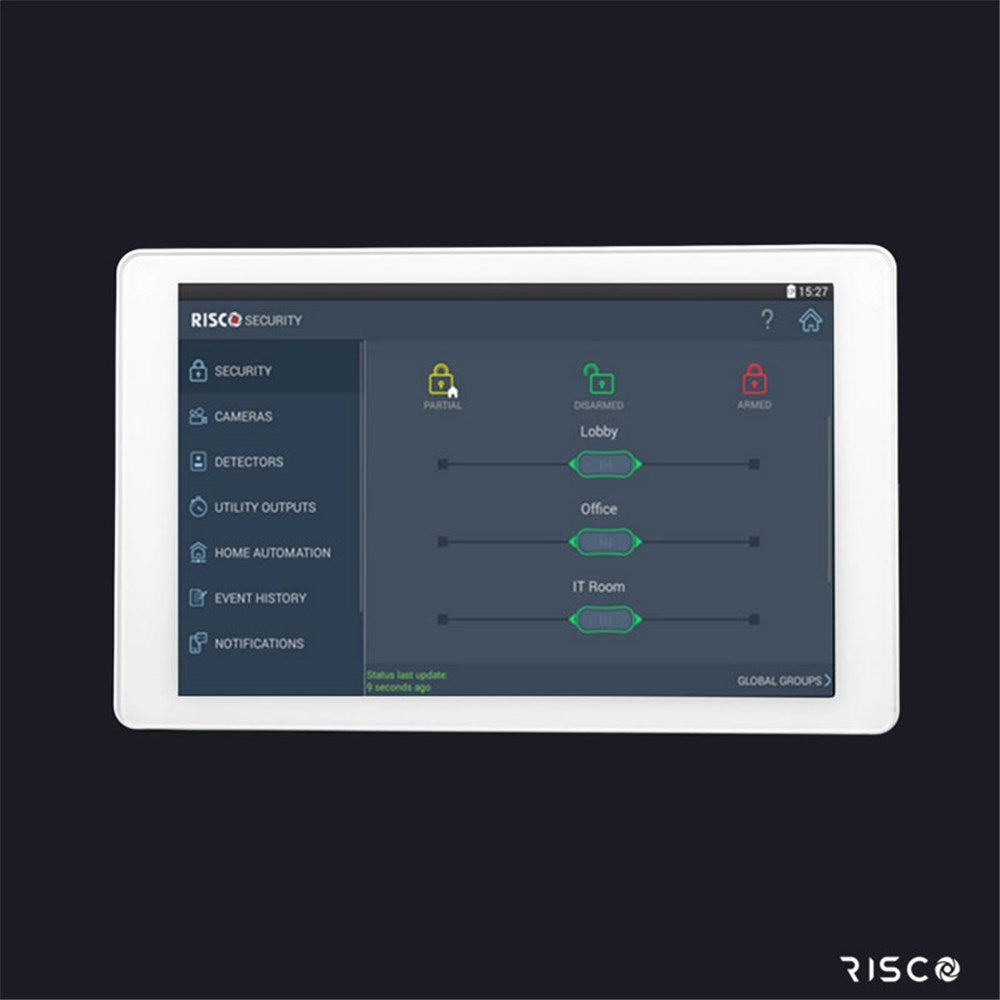

• Clear, user-friendly interface with customizable layout
• Control alarms, view live video, and access recorded footage
• Communicates via RS-485 with RISCO LightSYS+ and LightSYS2 systems
• Connects to RISCO Cloud through built-in Wi-Fi (2.4 GHz)
• Supports images from RISCO camera detectors

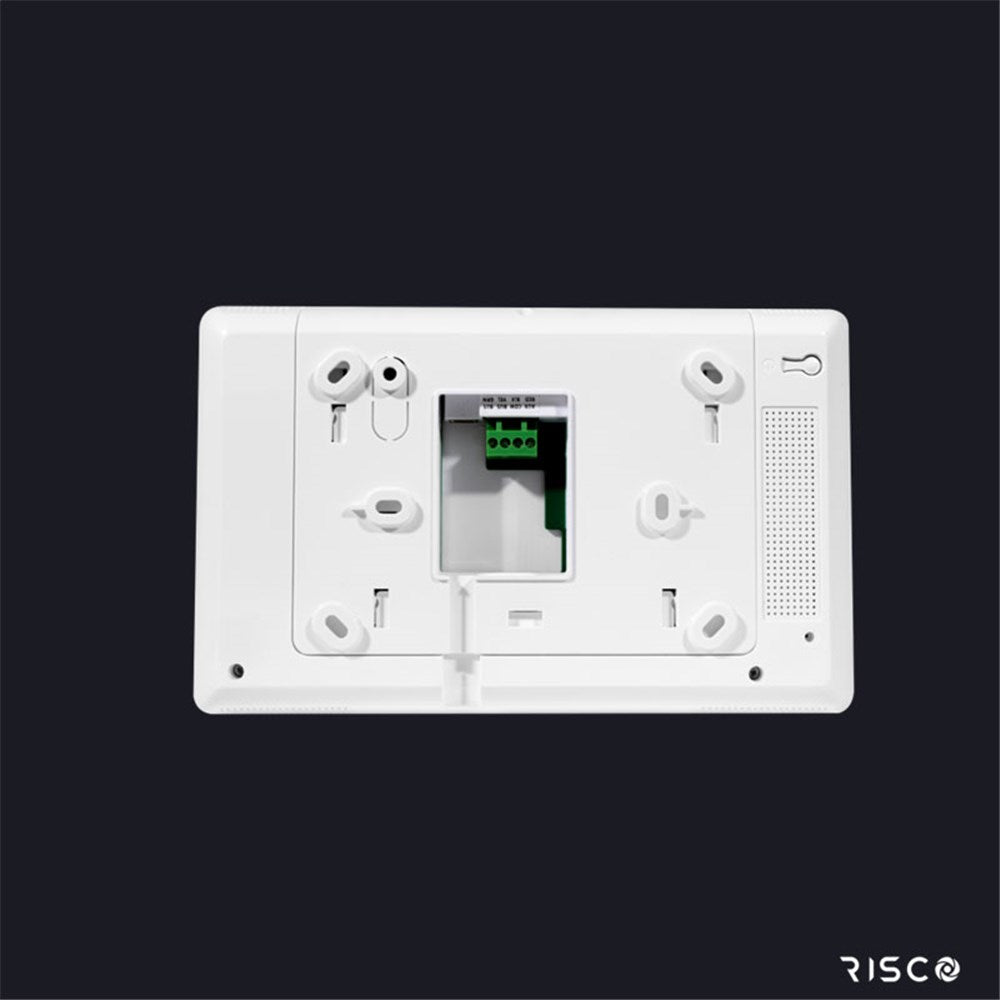

• Quick and easy installation with detachable wiring connector
• Automatic software updates via Wi-Fi
• Grade 3 certified for professional-level security

Specifications:

• Display: 8" IPS touchscreen
• Resolution: 800 × 1280
• Speaker: 8 Ω / 1 W
• Wi-Fi: 802.11 b/g/n 2.4 GHz
• System Interface: RS-485
• Protection: Wall tamper
• Dimensions (W × H × D): 208 × 129 × 24 mm
• Weight: 481 g
• Operating Voltage: 13V ±10%
• Power Consumption: 8W
• Operating Temperature: -10°C to +55°C
• Standard Compliance: EN50131-3, Grade 3, Environmental Class II, PD 6662:2017
• Compatibility: LightSYS+ and LightSYS2 (LightSYS v6.05 or higher)
• Note: Not suitable as a programming keypad; use RP432KP0000A for configuration. Recommended maximum of two RisControl keypads per system.

Smart, responsive touchscreen control for RISCO LightSYS+ and LightSYS2 systems.
