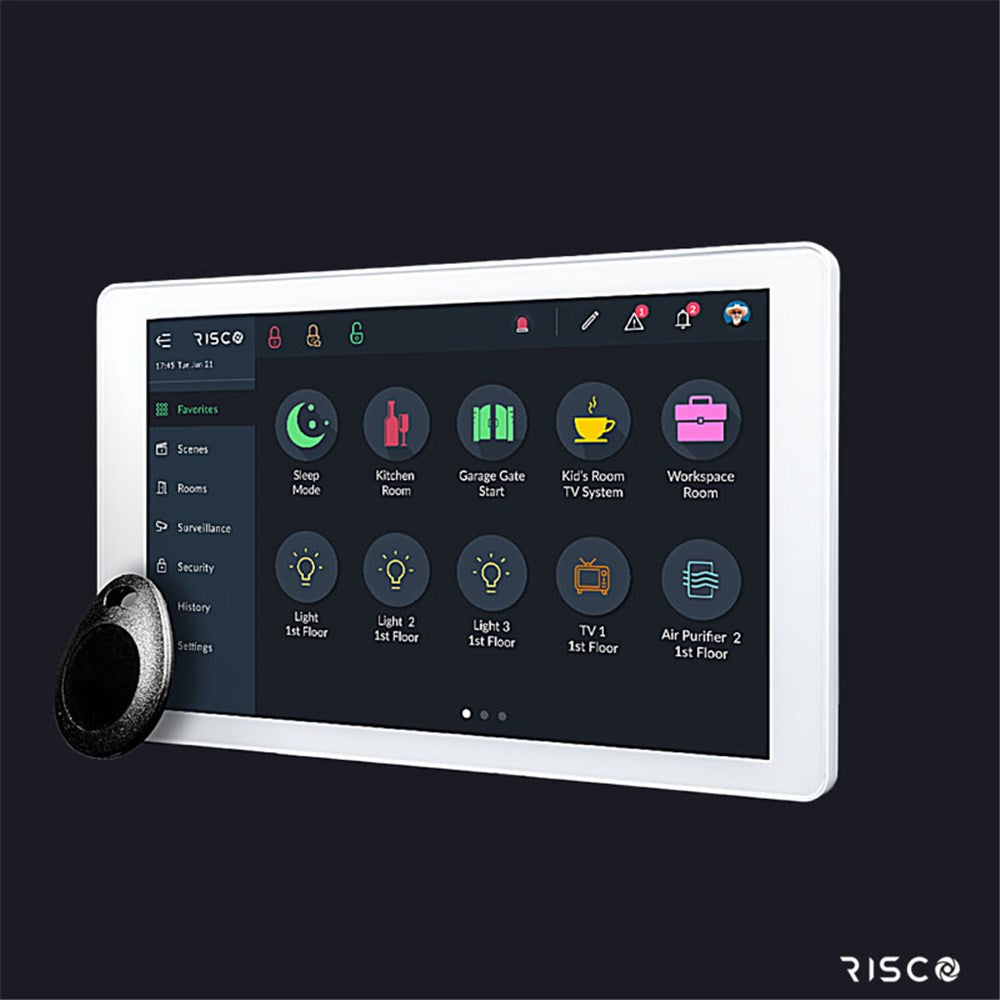

RISCO RisControl 8" Touchscreen Keypad with Proximity Reader – suits LightSYS+

The RISCO RisControl Touchscreen Keypad delivers intuitive, modern control for LightSYS+ alarm systems. Featuring an 8-inch IPS touchscreen and integrated proximity reader, it provides users with a seamless experience for system operation, arm/disarm, and video viewing via RISCO’s VUpoint Video Solution.

With a customizable user interface and Wi-Fi connectivity, RisControl combines convenience and flexibility in a stylish design. It communicates with the control panel via the System BUS (RS-485) and connects to the RISCO Cloud for automated software updates and live video integration.

Key Features:

• 8-inch full-color touchscreen with capacitive multi-touch control

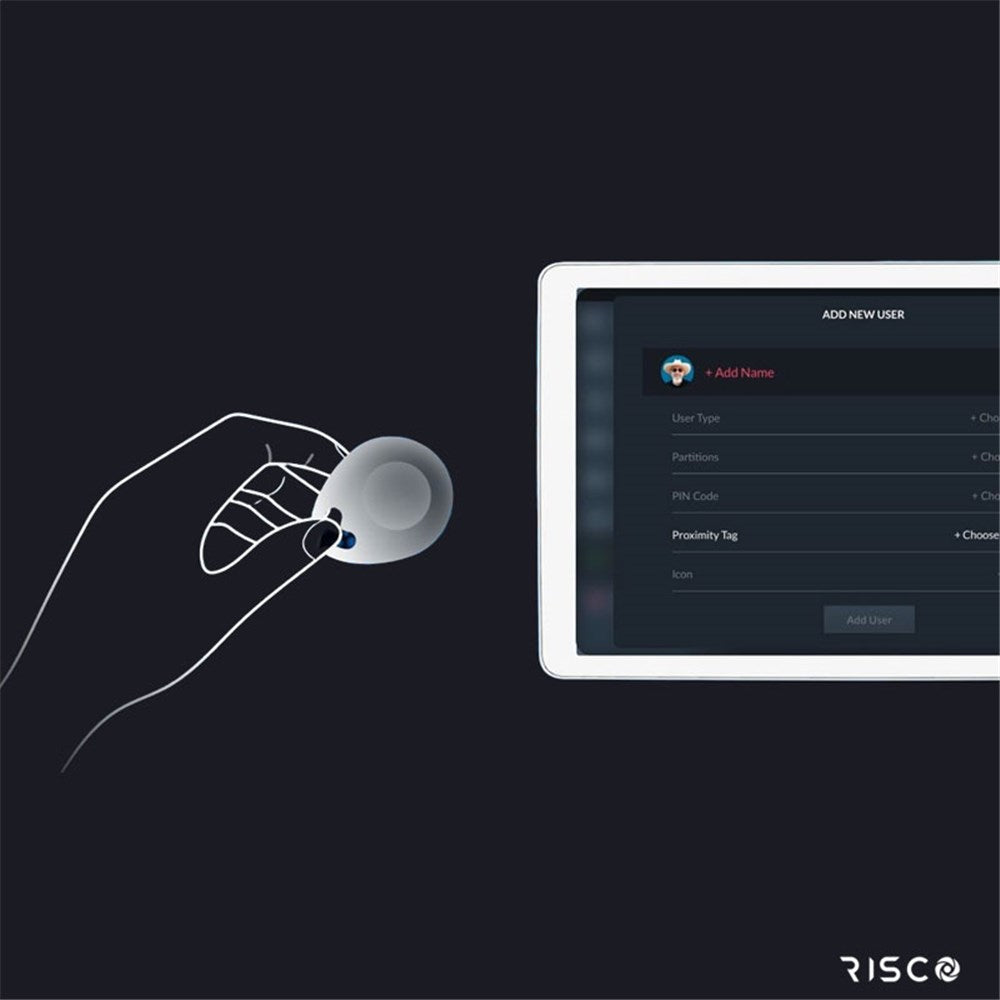

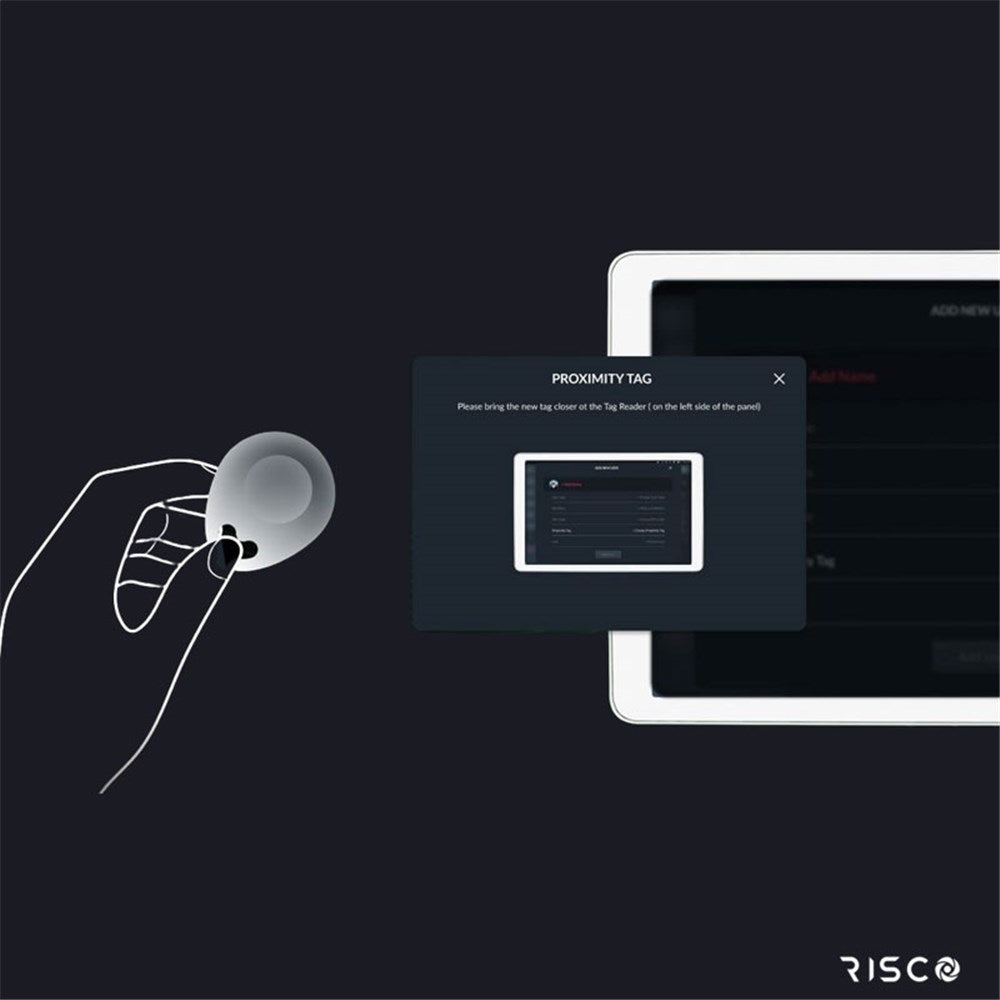

• Integrated proximity reader for fast and convenient arming/disarming
• Clear system overview with intuitive arm/disarm functionality
• Live video viewing and playback from RISCO VUpoint Video Solution
• Connects via System BUS (RS-485) and Wi-Fi
• Customizable interface for an enhanced user experience

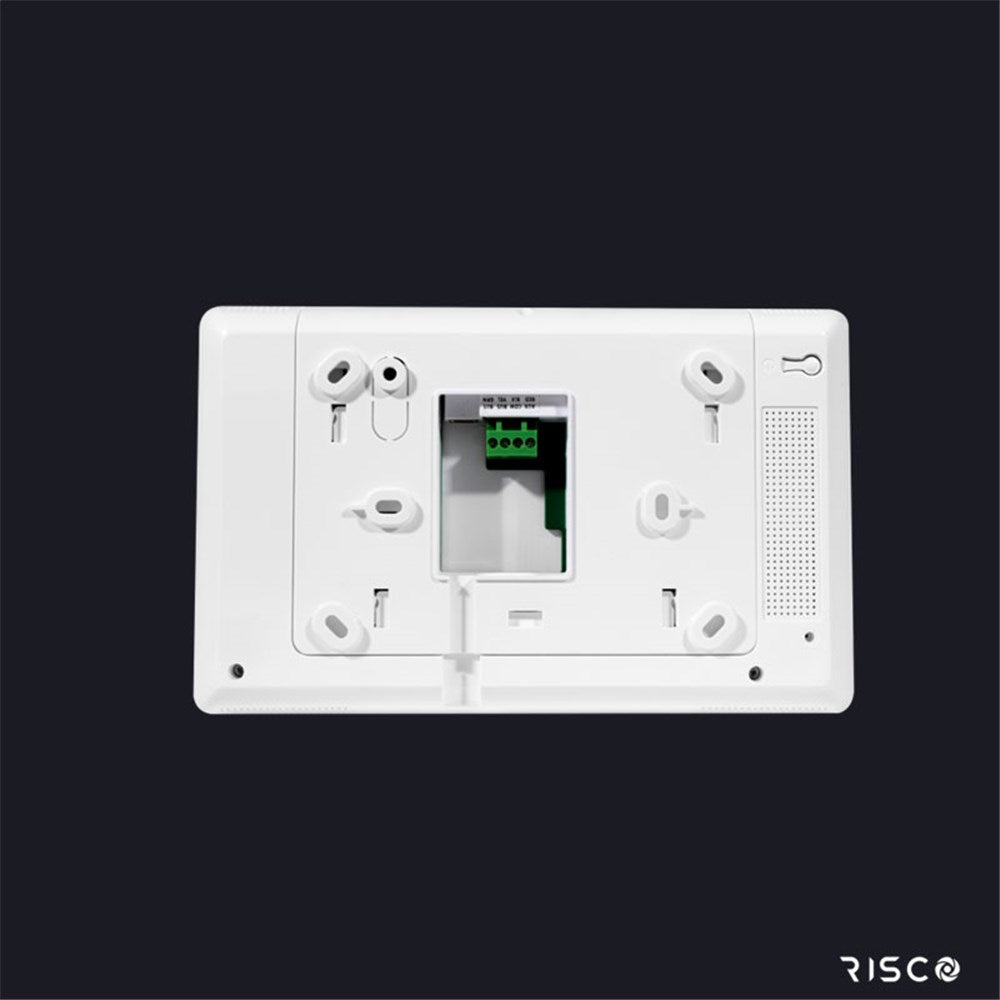

• Quick and easy installation with detachable wiring connector
• Automatic software updates via Wi-Fi
• Compatible with LightSYS+ version 3.2.x and higher
• Grade 3 certified for professional installations

Specifications:

• Display: 8" IPS touchscreen
• Touch Type: Capacitive, supports 5-point touch
• Operating System: Android 7.1.2
• Processor: A83T Octa-core Cortex A7
• Memory: 1 GB DDR3M RAM
• Storage: 8 GB EMMC Flash
• Resolution: 800 × 1280
• Proximity Reader: 13.56 MHz
• Speaker: 8 Ω / 1 W
• Wi-Fi: 802.11 b/g/n 2.4 GHz
• Bluetooth: BT 4.0, 2.4 GHz
• Connections: RS-485, detachable terminal block, 1 × USB Type-C
• Protection: Wall tamper
• Dimensions (W × H × D): 208 × 129 × 24 mm
• Weight: 481 g
• Operating Voltage: 13V ±10%
• Power Consumption: 170 mA, 5W max
• Operating Temperature: -10°C to +55°C
• Standard Compliance: EN50131-3, Grade 3, Environmental Class II, PD 6662:2017
• Compatibility: LightSYS+ version 3.2.x and higher
• Note: Not a programming keypad; use RP432KP0000A for system programming. Maximum of two RisControl units per system recommended.

Smart, responsive touchscreen control with integrated proximity access for LightSYS+ systems.
