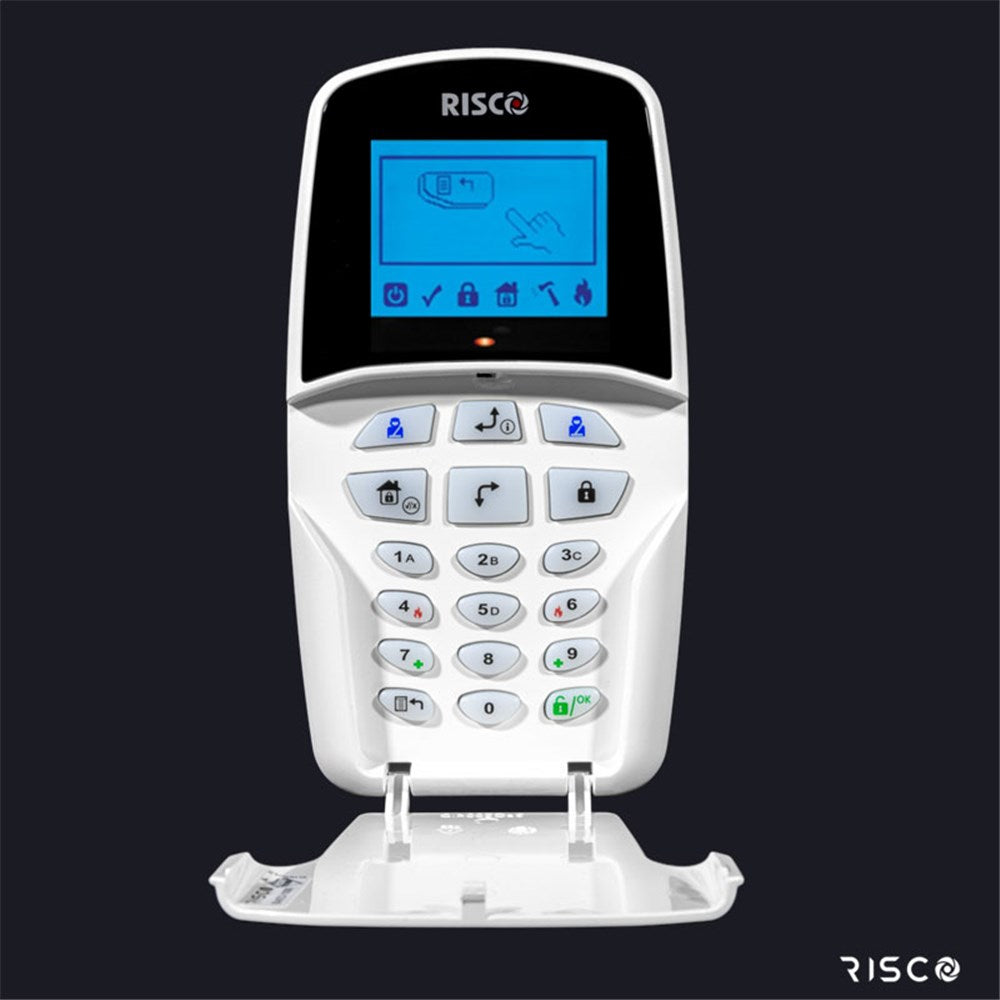

RISCO Standard LCD Keypad – suits LightSYS+ & LightSYS2

The RISCO Standard LCD Keypad is a reliable, easy-to-use control interface designed for LightSYS+ and LightSYS2 security systems. Featuring a clear graphic LCD display and simple operation, it provides efficient system management for residential, commercial, and industrial applications.

Built for professional use, this keypad connects to the system via a 4-wire BUS, ensuring stable communication and dependable performance. Available with or without a proximity reader, the LCD keypad offers flexibility for a wide range of installation requirements.

Key Features:

• Compatible with RISCO LightSYS+, LightSYS2, and ProSYS panels
• Graphic LCD display for clear status indication and system control
• Available with or without integrated proximity reader
• 4-wire BUS connection for secure communication with control panel
• Compact and durable design for easy installation
• Energy efficient with low current consumption
• Compliant with EN 50131-3 Grade 2, Class II standards

Specifications:

• Display Type: Graphic LCD
• Power Supply: 13.8V ±10%
• Current Consumption (Standard): 48 mA typical / 52 mA max
• Current Consumption (Prox Model): 62 mA typical / 130 mA max
• Main Panel Connection: 4-wire BUS (up to 300 m)
• Dimensions (H × W × D): 153 × 84 × 28 mm
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -20°C to +60°C
• Compliance: EN 50131-3 Grade 2, Class II

Reliable and functional LCD keypad for LightSYS+ and LightSYS2 systems.
